Swivel Joints
ATN swivel joints are ball track controlled swivel elements with a medium channel, in order to ensure safe transport of liquids and gases. ATN swivel joints feature either 1 or 2 ball tracks, enabling swivel movements such as for example a 360° rotation without any problems, despite simultaneous external loading through force and torque.
ATN swivel joints are standardly produced in carbon steel (1.0577, AISI 4140), stainless steel (AISI 316L), and also aluminum (AW-5083). Further stainless steels (AISI 304, AISI 316Ti) and materials such as Duplex, Super Duplex and Hastelloy are available on request at all time. All ATN swivel joints up to a nominal width of DN1200 (48″) are manufactured completely at our plant in Herdecke, Germany.

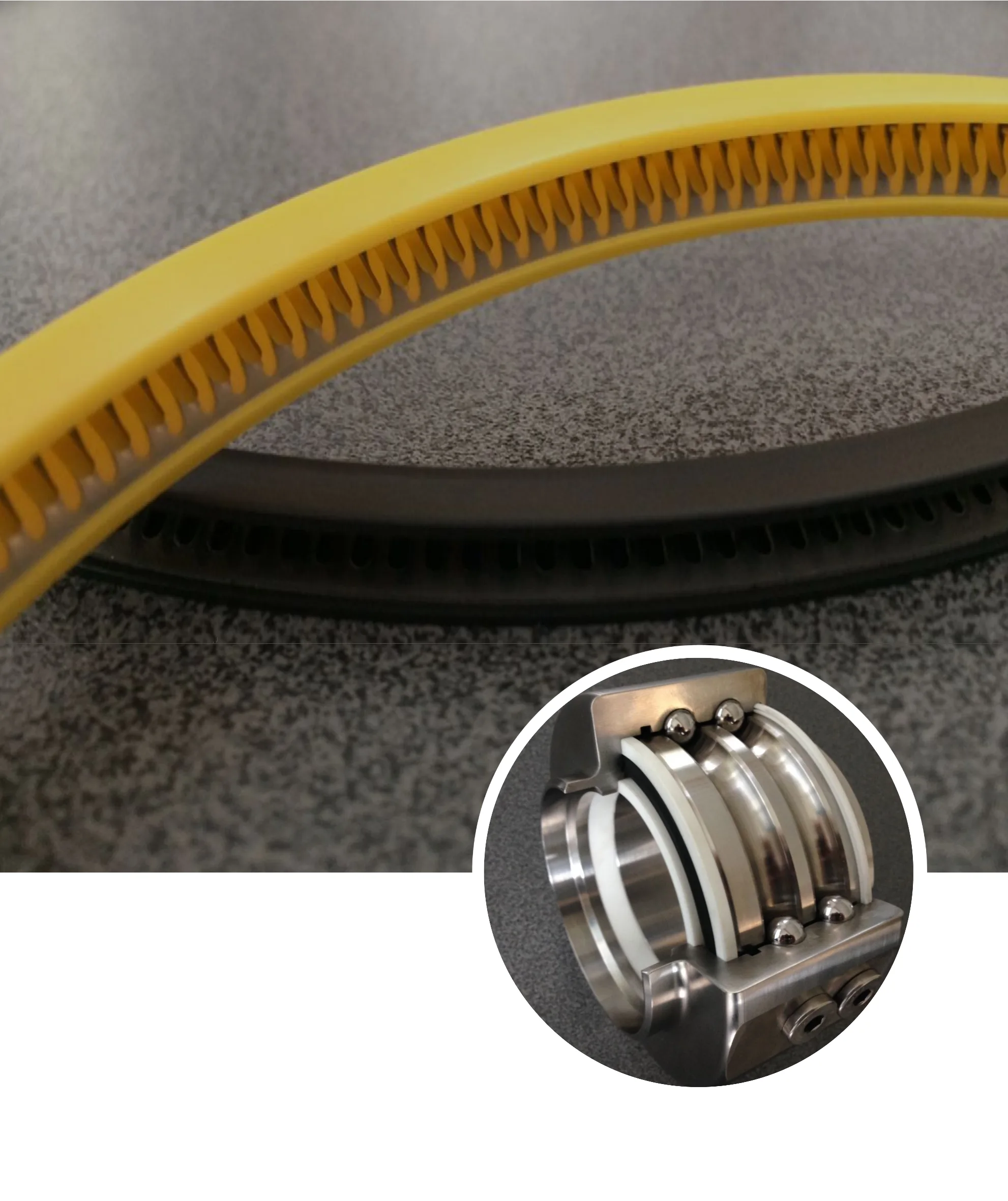

Axial PTFE groove seal rings which are energized with stainless steel springs are used as process seals. In special applications (e.g. FDA, EG, ADI in the field of food and hygiene) particular compounds are used.

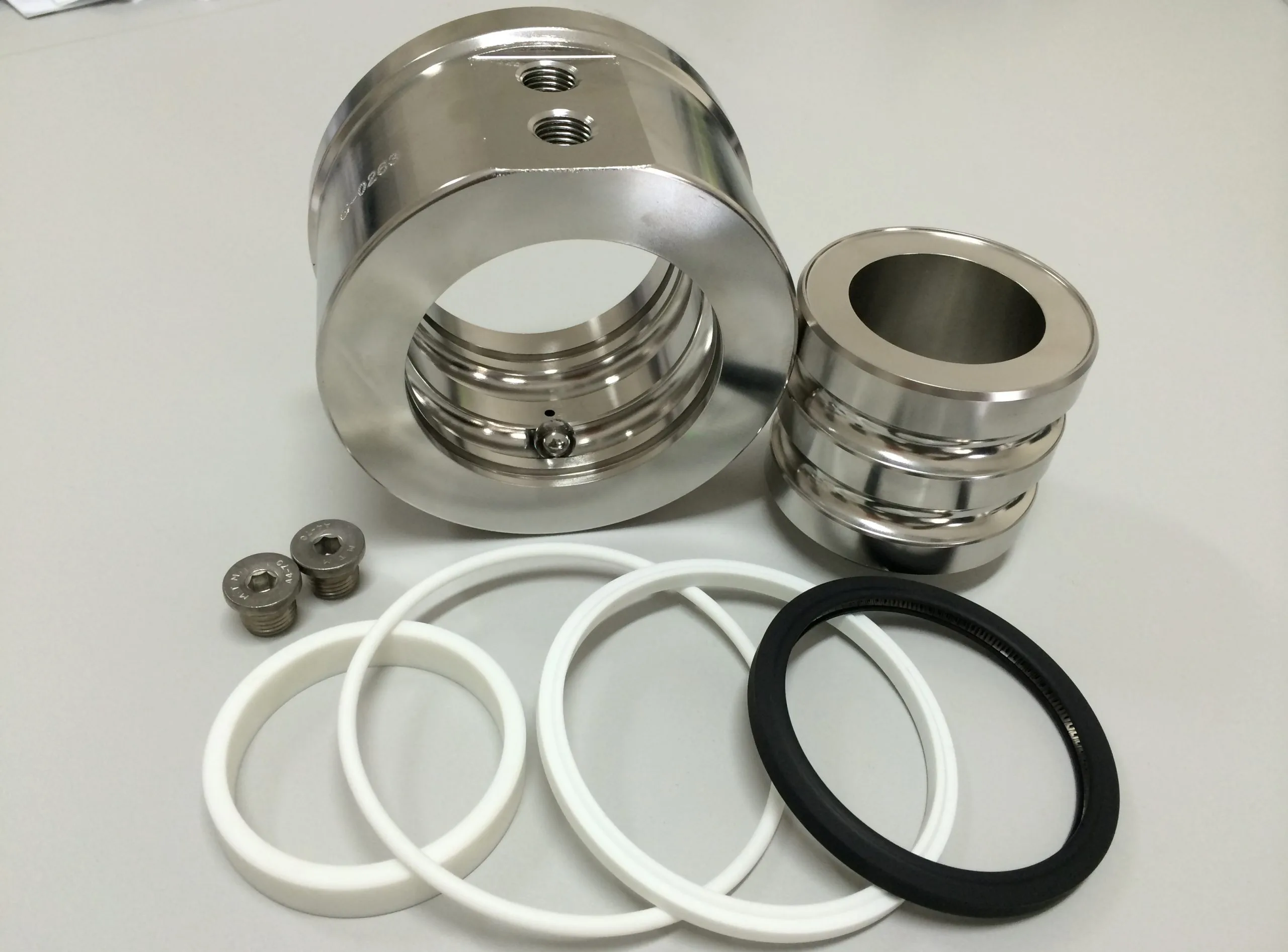

All seals are extremely easy to replace, and available from stock as a seal kit. All swivel joints are provided with the appropriate lubricating grease according to the operating conditions (H1 / FDA in the food and pharmaceutical industry). For abrasive media, internal scraper are installed to protect the process seal and if ATN swivel joints have to work in the medium special external seals are used.
The modular principle and 8 basic construction shapes mean that all spatial movements and connection parameters are possible without problems.

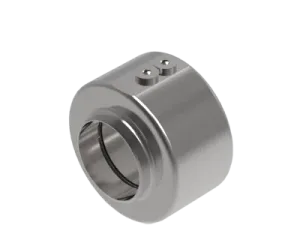

ATN Swivel Joint type GK (Welding Swivel)
Ball Races
2
Nominal diameter
DN25 (1“) up to DN450 (18“)
Working pressure
Vacuum up to 420 bar (6000 PSI)
Working temperature
-60°C up to +260°C (-76°F up to +500°F)
Material
Carbon steel, stainless steel, duplex, super duplex, hastelloy
Certification
TA Luft, PED 2014/68/EU

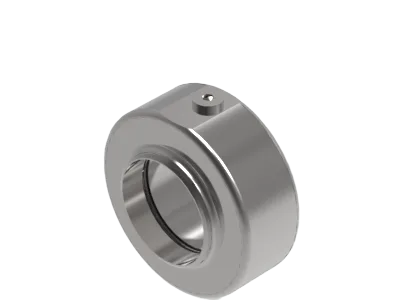

ATN Swivel Joint type GKL (Welding Swivel)
-
Ball Races
1
-
Nominal diameter
DN25 (1“) up to DN450 (18“)
-
Working pressure
Vacuum up to 100 bar (1450 PSI)
-
Working temperature
-60°C up to +260°C (-76°F up to +500°F)
-
Material
Carbon steel, stainless steel, duplex, super duplex, hastelloy
-
Certification
TA Luft, PED 2014/68/EU

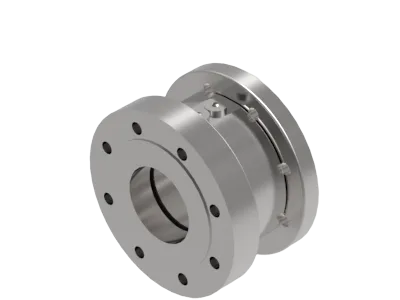

ATN Swivel Joint type GKF (DIN / EN / ANSI Flange Swivel)
-
Ball Races
2
-
Nominal diameter
DN25 (1“) up to DN1200 (48“)
-
Working pressure
Vacuum up to 420 bar (6000 PSI)
-
Working temperature
-60°C up to +260°C (-76°F up to +500°F)
-
Material
Carbon steel, stainless steel, aluminium, duplex, super duplex, hastelloy
-
Certification
TA Luft, PED 2014/68/EU

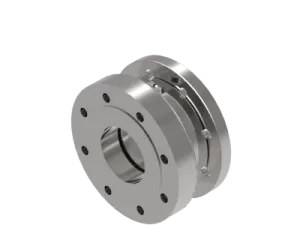

ATN Swivel Joint type GKFL (DIN / EN / ANSI Flange Swivel)
-
Ball Races
1
-
Nominal diameter
DN25 (1“) up to DN450 (18“)
-
Working pressure
Vacuum up to 100 bar (1450 PSI)
-
Working temperature
-60°C up to +260°C (-76°F up to +500°F)
-
Material
Carbon steel, stainless steel, aluminium, duplex, super duplex, hastelloy
-
Certification
TA Luft, PED 2014/68/EU

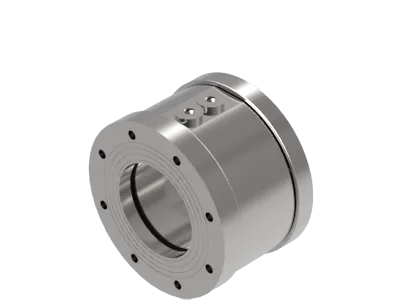

ATN Swivel Joint type GKF-TW (Aviation)
-
Ball Races
2
-
Nominal diameter
DN50 (2“) up to DN150 (6“)
-
Working pressure
Vacuum up to 16 bar (232 PSI)
-
Working temperature
-60°C up to +100°C (-76°F up to +212°F)
-
Material
Aluminium, stainless steel
-
Certification
TA Luft, PED 2014/68/EU

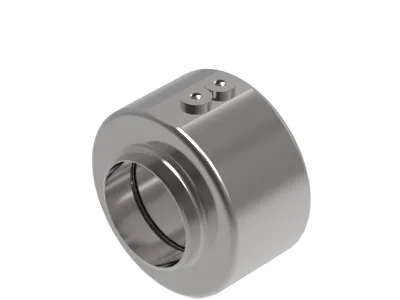

ATN Swivel Joint type LMG2 (Food & Pharma)
-
Ball Races
2
-
Nominal diameter
DN25 (1“) up to DN200 (8“)
-
Working pressure
Vacuum up to 10 bar (145 PSI)
-
Working temperature
-60°C up to +260°C (-76°F up to +500°F)
-
Material
304, 316L, 316Ti
-
Certification
TA Luft, PED 2014/68/EU, FDA+EG+ADI

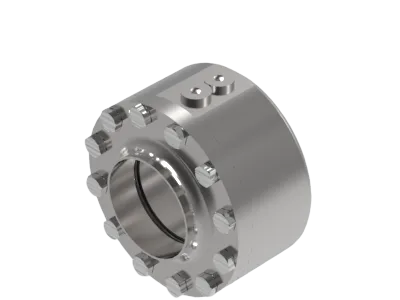

ATN Swivel Joint type LMG3 (Food & Pharma)
-
Ball Races
2
-
Nominal diameter
DN25 (1“) up to DN200 (8“)
-
Working pressure
Vacuum up to 10 bar (145 PSI)
-
Working temperature
-60°C up to +260°C (-76°F up to +500°F)
-
Material
304, 316L, 316Ti
-
Certification
TA Luft, PED 2014/68/EU, FDA+EG+ADI

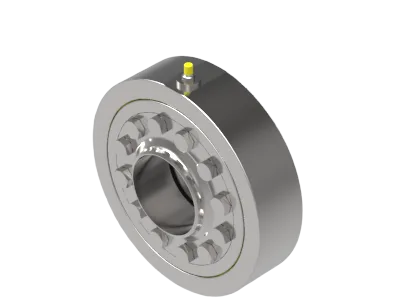

ATN Swivel Joint type EFG (Land Loading Arm Swivel)
-
Ball Races
1
-
Nominal diameter
DN50 (2“) up to DN200 (8“)
-
Working pressure
Vacuum up to 40 bar (580 PSI)
-
Working temperature
-60°C up to +260°C (-76°F up to +500°F)
-
Material
Carbon steel, stainless steel, duplex, super duplex, hastelloy
-
Certification
TA Luft, PED 2014/68/EU

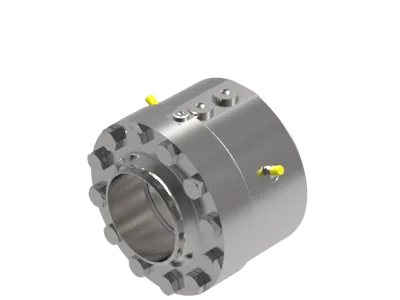

ATN Swivel Joint type GKV (Land Loading Arm Swivel)
-
Ball Races
1
-
Nominal diameter
DN25 (1“) up to DN250 (10“)
-
Working pressure
Vacuum up to 40 bar (580 PSI)
-
Working temperature
-60°C up to +260°C (-76°F up to +500°F)
-
Material
Carbon steel, stainless steel, duplex, super duplex, hastelloy
-
Certification
TA Luft, PED 2014/68/EU

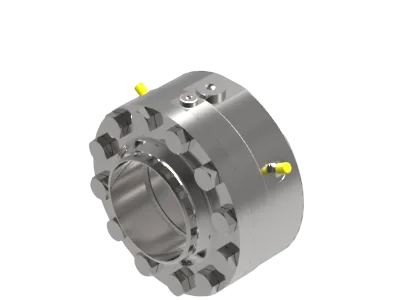

ATN GKVL (Land Loading Arm Swivel)
-
Ball Races
1
-
Nominal diameter
DN25 (1“) up to DN250 (10“)
-
Working pressure
Vacuum up to 40 bar (580 PSI)
-
Working temperature
-60°C up to +260°C (-76°F up to +500°F)
-
Material
Carbon steel, stainless steel, duplex, super duplex, hastelloy
-
Certification
TA Luft, PED 2014/68/EU

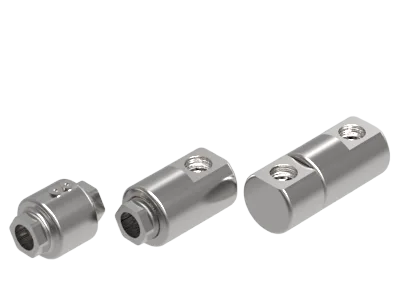

ATN Swivel Joint type GKM (High Pressure)
-
Ball Races
2
-
Nominal diameter
DN25 (1“) up to DN50 (2“)
-
Working pressure
Vacuum up to 420 bar (6000 PSI)
-
Working temperature
-60°C up to +260°C (-76°F up to +500°F)
-
Material
Carbon steel, stainless steel, duplex, super duplex, hastelloy
-
Certification
TA Luft, PED 2014/68/EU

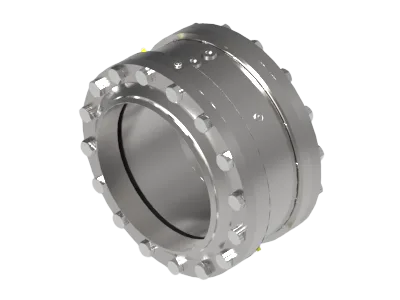

ATN Swivel Joint type SVG (Marine Loading Arm Swivel)
-
Ball Races
2
-
Nominal diameter
DN100 (4“) up to DN600 (24“)
-
Working pressure
Vacuum up to 40 bar (580 PSI)
-
Working temperature
-60°C up to +260°C (-76°F up to +500°F)
-
Material
Carbon steel, stainless steel, duplex, super duplex, hastelloy
-
Certification
TA Luft, PED 2014/68/EU

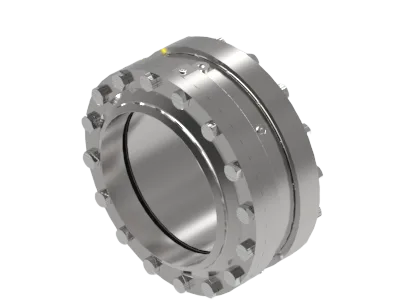

ATN Swivel Joint type SVGL (Marine Loading Arm Swivel)
-
Ball Races
1
-
Nominal diameter
DN100 (4“) up to DN400 (16“)
-
Working pressure
Vacuum up to 16 bar (232 PSI)
-
Working temperature
-60°C up to +260°C (-76°F up to +500°F)
-
Material
Carbon steel, stainless steel, duplex, super duplex, hastelloy
-
Certification
TA Luft, PED 2014/68/EU

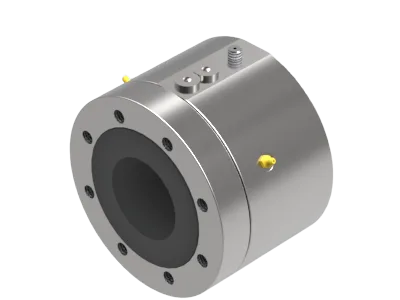

ATN Swivel Joint type PTFE (Aggressive Media Swivel)
-
Ball Races
2
-
Nominal diameter
DN50 (2“) up to DN150 (6“)
-
Working pressure
Vacuum up to 16 bar (232 PSI)
-
Working temperature
-60°C up to +260°C (-76°F up to +500°F)
-
Material
Carbon steel, stainless steel, duplex, super duplex, hastelloy
-
Certification
TA Luft, PED 2014/68/EU

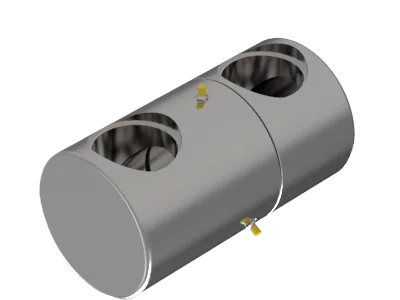

ATN Swivel Joint type GNB (Land Loading Arm Swivel)
-
Ball Races
2
-
Nominal diameter
DN50 (2“) up to DN150 (6“)
-
Working pressure
Vacuum up to 40 bar (580 PSI)
-
Working temperature
-60°C up to +260°C (-76°F up to +500°F)
-
Material
Carbon steel, stainless steel, duplex, super duplex, hastelloy
-
Certification
TA Luft, PED 2014/68/EU

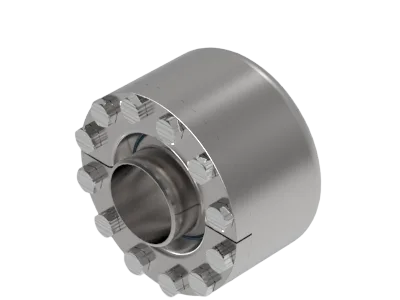

ATN Swivel Joint type KGL (Ball Joint)
-
Ball Races
–
-
Nominal diameter
DN25 (1“) up to DN400(16“)
-
Working pressure
Vacuum up to 40 bar (580 PSI)
-
Working temperature
-60°C up to +260°C (-76°F up to +500°F)
-
Material
Carbon steel, stainless steel, duplex, super duplex, hastelloy
-
Certification
PED 2014/68/EU

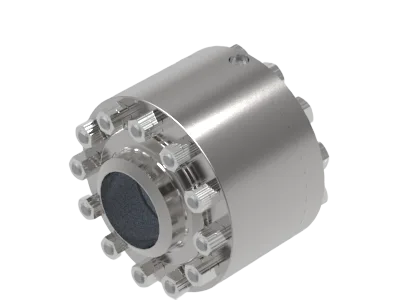

ATN Swivel Joint type HT (High temp)
-
Ball Races
2
-
Nominal diameter
DN25 (8“) up to DN150 (6“)
-
Working pressure
Vacuum up to 40 bar (580 PSI)
-
Working temperature
-10°C up to +600°C (-4°F up to +1112°F)
-
Material
Stainless steel
-
Certification
–

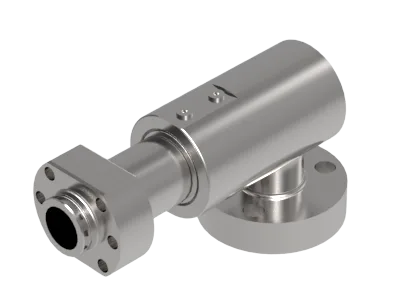

ATN Swivel Joint type GKW (custom-specific)
-
Ball Races
2
-
Nominal diameter
DN50 (2“) up to DN65(2 ½“)
-
Working pressure
Vacuum up to 420 bar (6000 PSI)
-
Working temperature
-60°C up to +260°C (-76°F up to +500°F)
-
Material
Carbon Steel
-
Certification
PED 2014/68/EU

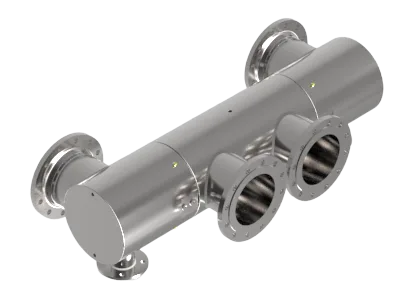

ATN Swivel Joint type SO (custom-specific)
-
Ball Races
According to customer specification
-
Nominal diameter
According to customer specification
-
Working pressure
According to customer specification
-
Working temperature
According to customer specification
-
Material
Carbon steel, stainless steel, aluminium, duplex, super duplex, hastelloy
-
Certification
According to customer specification
